GRID Calculation

Introduction

GRID Calculation is a detailed study on the whole power distribution network including detail information on the equipment installed on the network, power flow, strengthen the power network, prepare protection system, the possibility of expanding the power network, profit analyzation, and many other important benefits.

What's great about GRID Calculation?

Network Assets

Compile technical papers and collect data

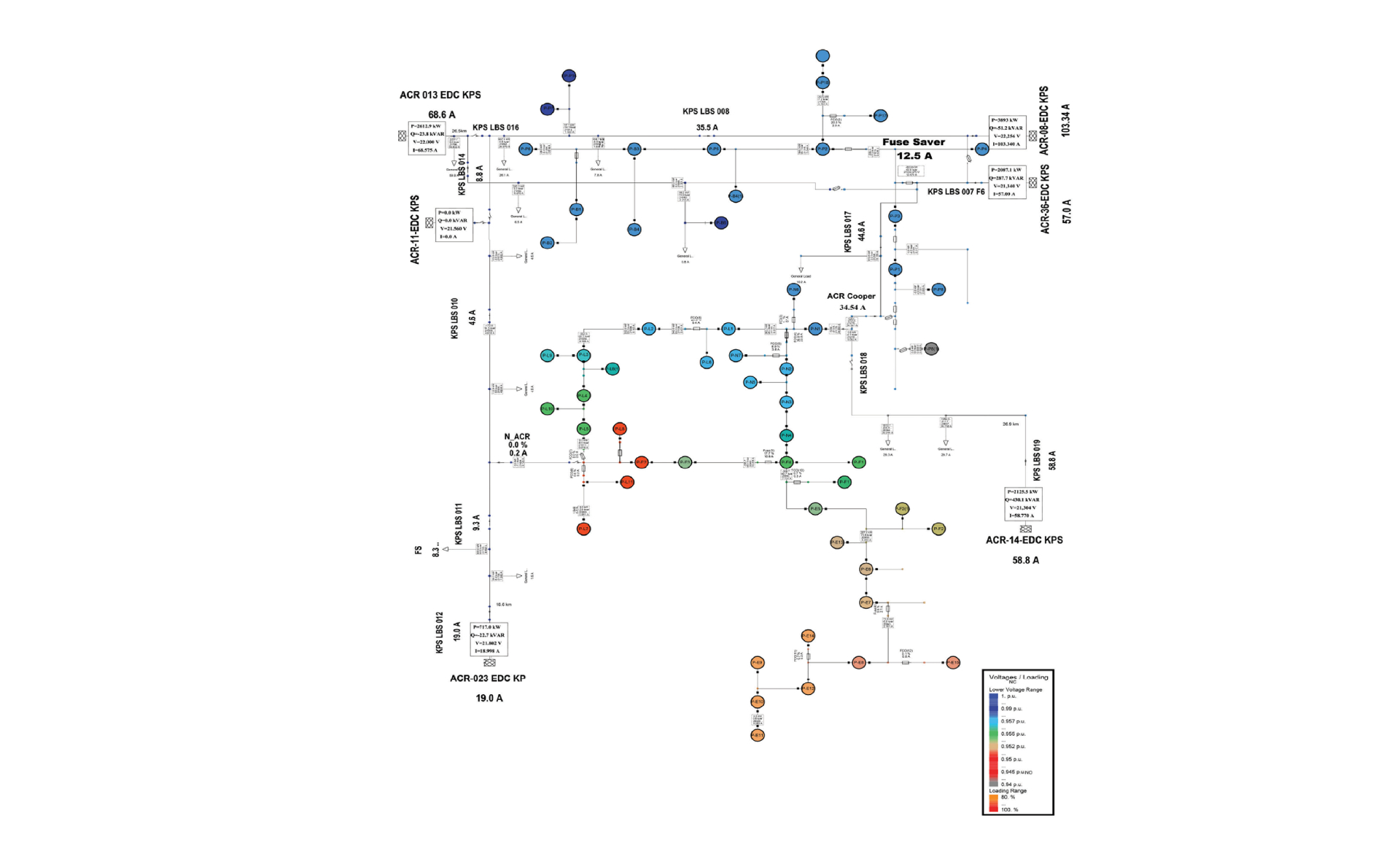

Network Power Flow

Learn about power flow and concentrate on the network's circumstances and specific issue

Network Reconfiguration

Make recommendations for strengthening and enhancing the electrical grid

Network Scalability

Demonstrating the potential for power network upgrade

Protection Optimization/Coordination

Create a more robust network defense system to guard against faults

Smart Grid Integration Suggestion

Advising on grid modernization using Smart Grid Solutions, which can boost revenue and facilitate power network distribution

Network Assets

View data and information about the entire distribution network
Indicate the type and number of electrical appliances actually used

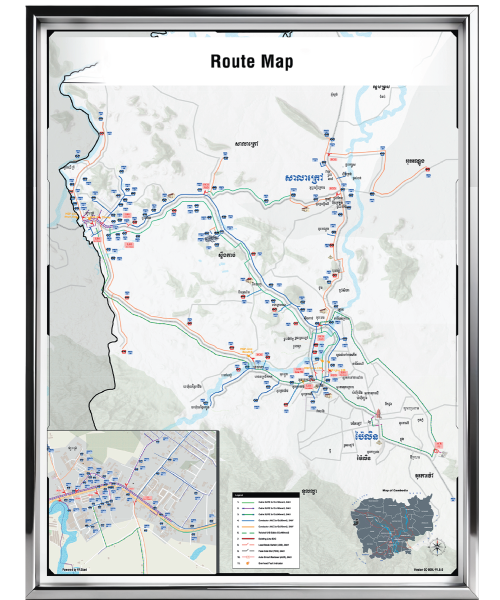

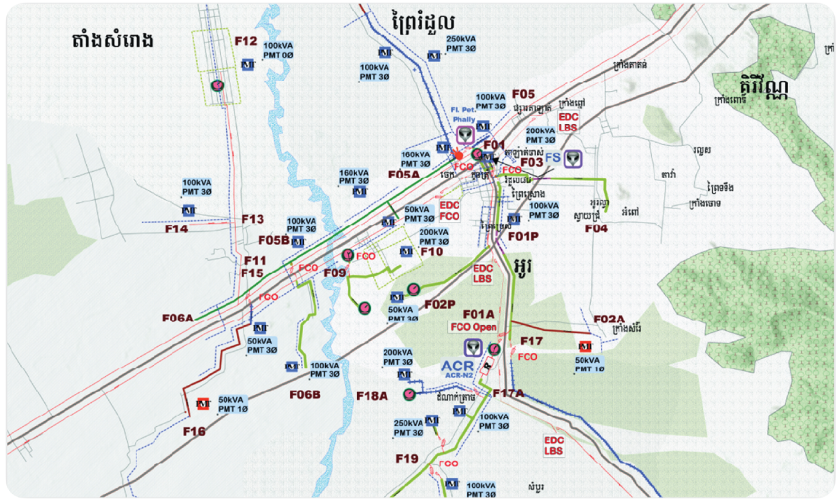

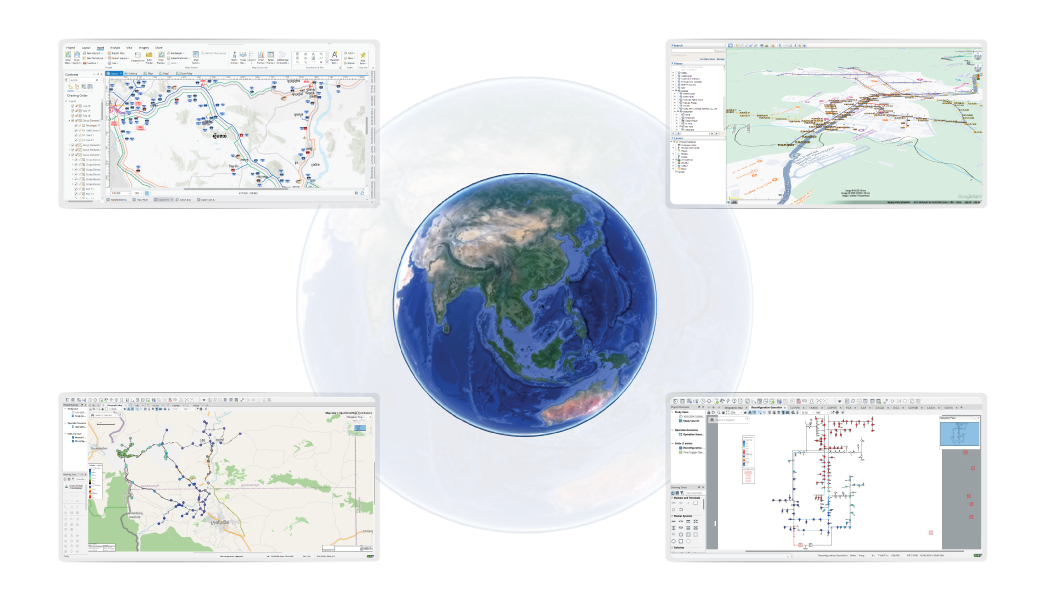

Map and technical layout of the distribution network

Network Power Flow

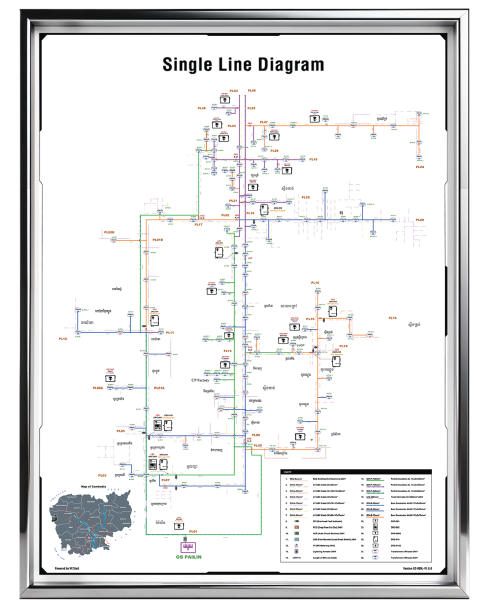

Preparation of technical drawings from the supply source to the end of the distribution network
The results of the flow, power and overall health of the network made according to technical standards
Indicates the loss of power on the transformer line and the loss due to various factors.

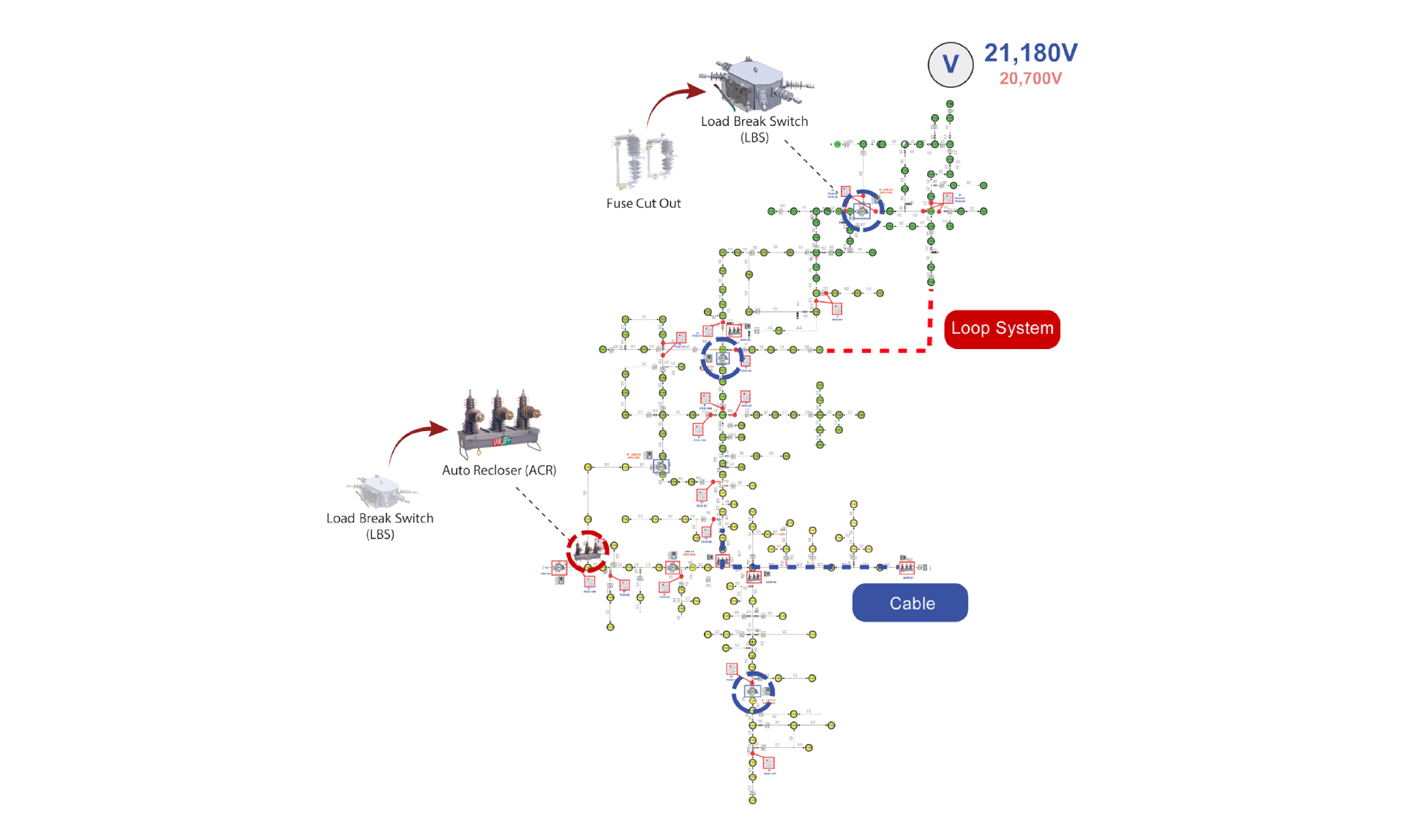

Network Reconfiguration

Prepare existing electrical equipment according to technical specifications
Add necessary equipments to prevent large power outages
Prevent other energy loss

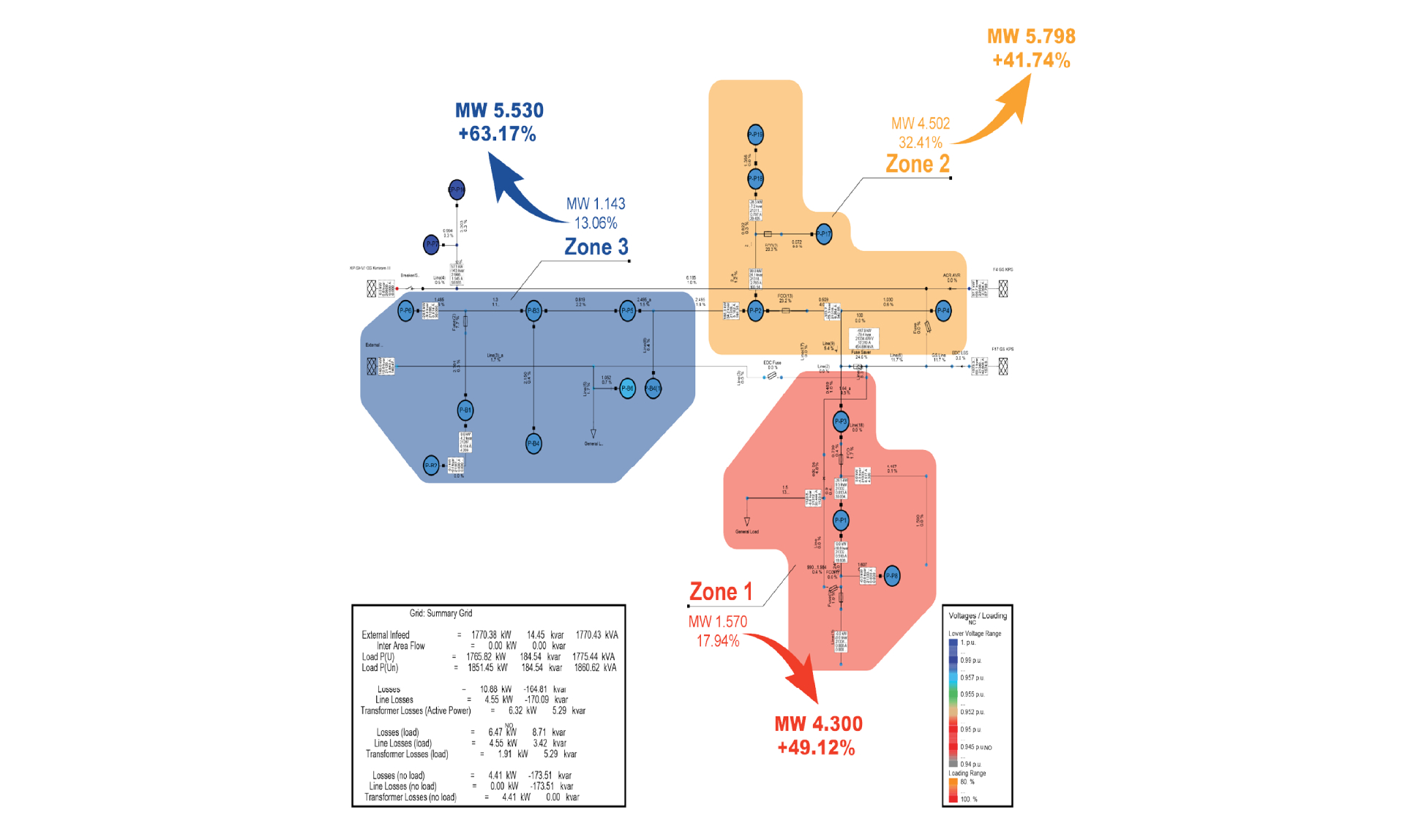

Network Scalability

Indicate how much each network can afford to supply in each area
After studying the feasibility of expanding the network, which led to the loss of power, the decrease in voltage and the percentage of cable capacity in each area.

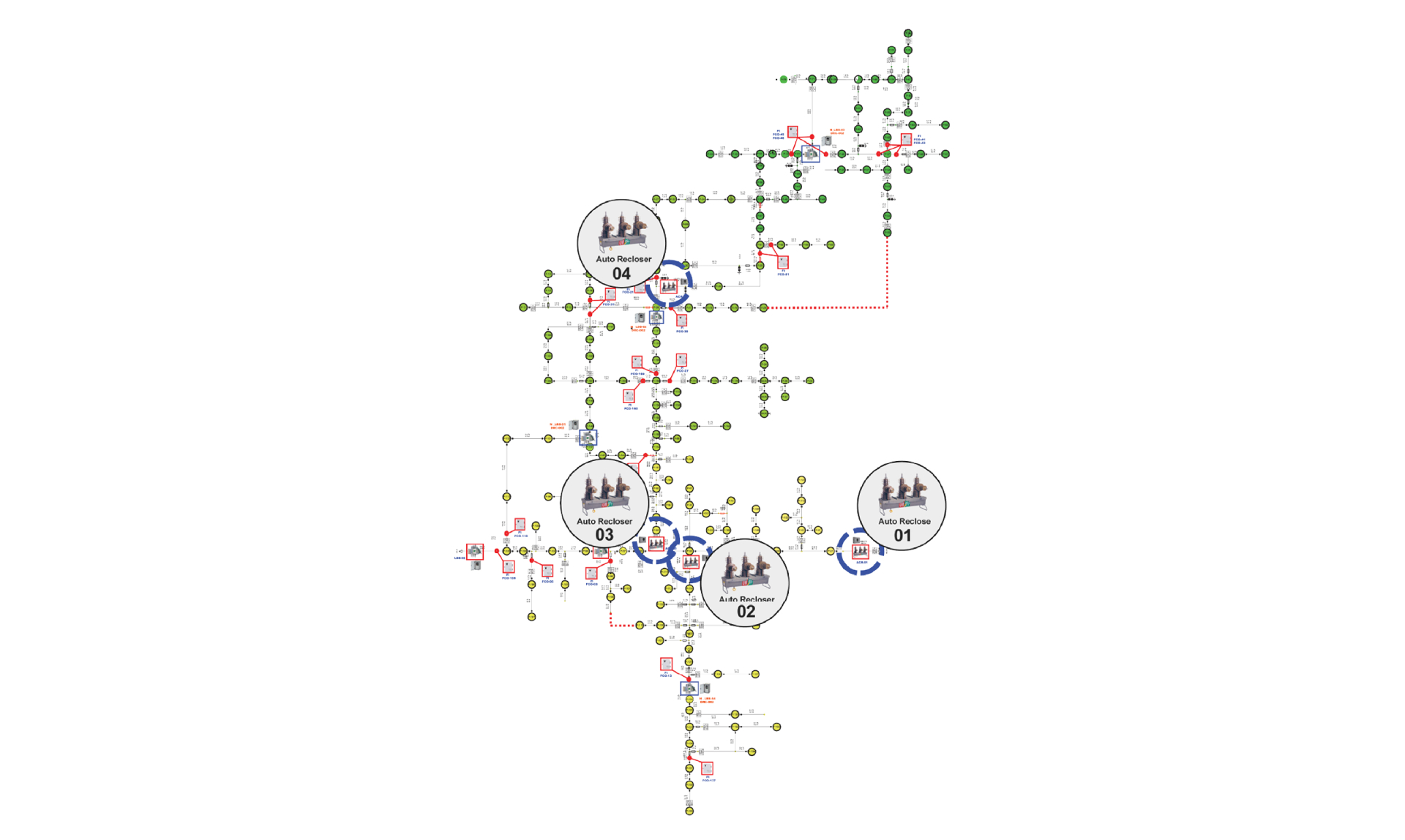

Protection Optimization/Coordination

Ensure that all protection systems on the distribution network can respond in the event of faults
Help secure distribution network
Identify any side effects when malfunctions occur and provide suggestions to address them.

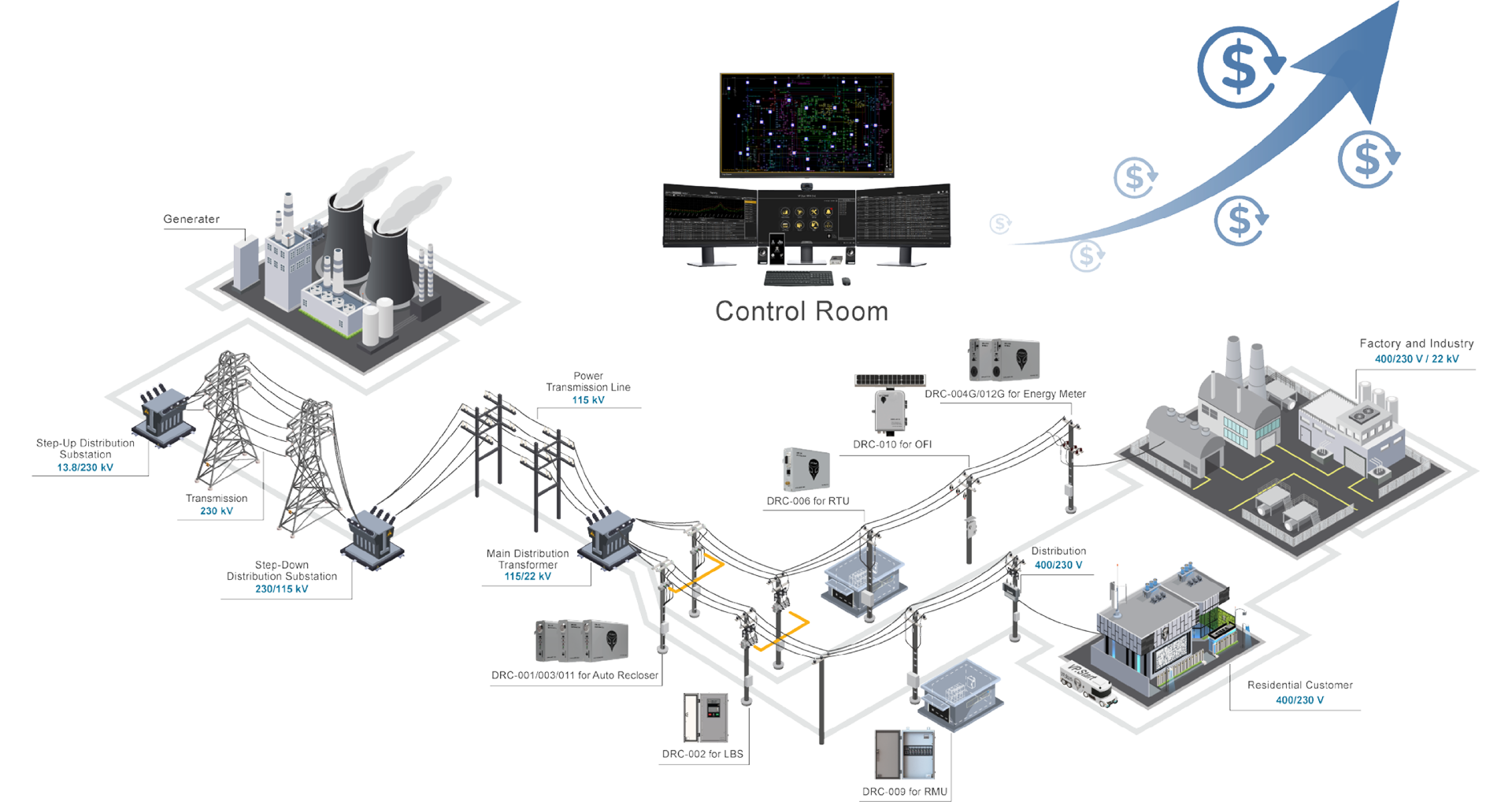

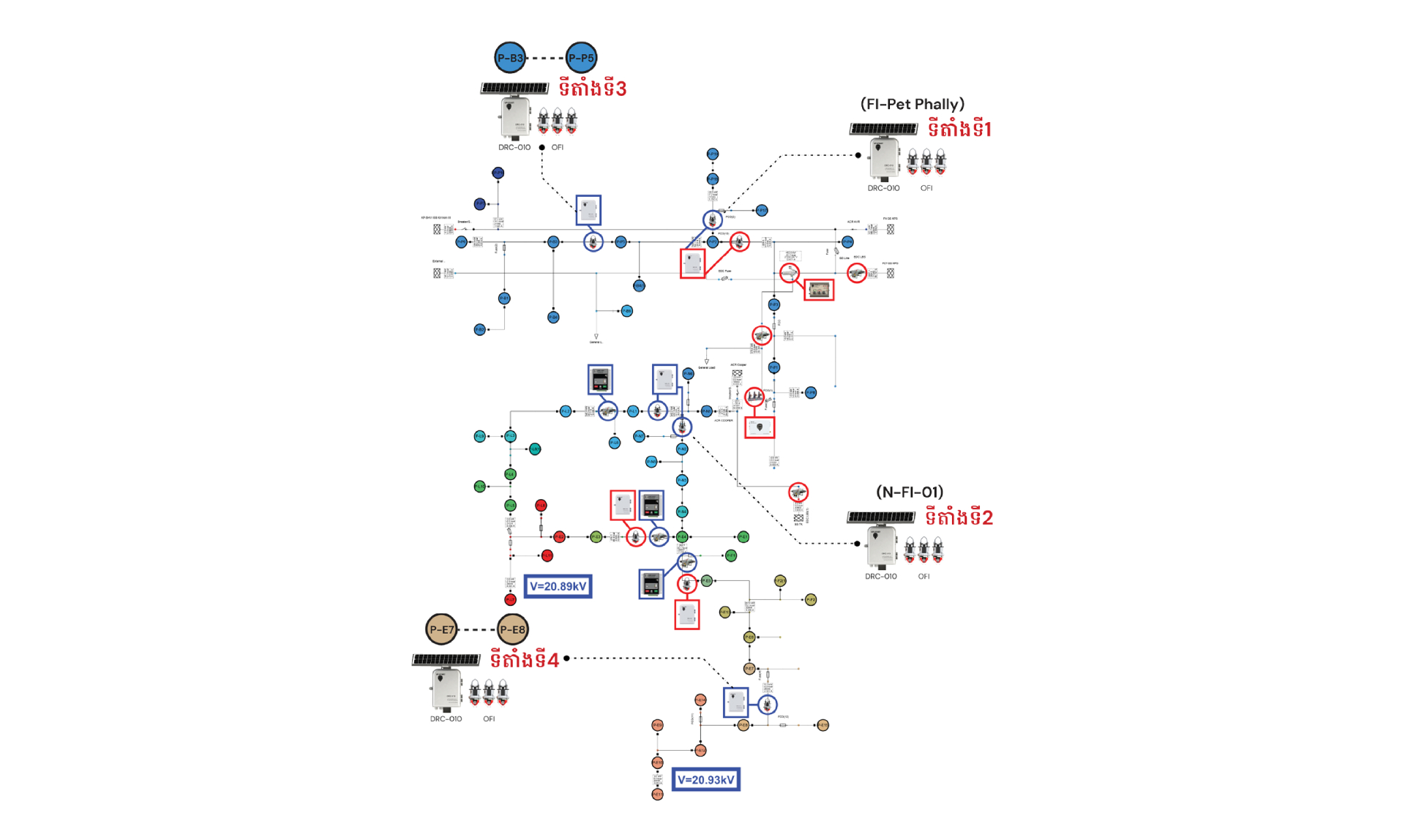

Smart Grid Integration Suggestion

Traditional Grid

No information on timely power outages and power outages
Disconnecting / connecting electricity is difficult because it has to be operated directly.
Power outages last a long time and are difficult to find fault

Instant alarm in the event of faults

Faults frequently happens on the distribution lines. DRC-001 obtains the faults information quickly and alerts to the operators to understand whether it is temporary or permanent fault. Through Alarm Function, DRC-001 recorded those faults information into Alarm Event Logs that are very useful for operators to enhance their distribution management and make it more reliable and sustainable.
