Country of Origin
Cambodia
Manufacturer’s Name
VP.Start Technology

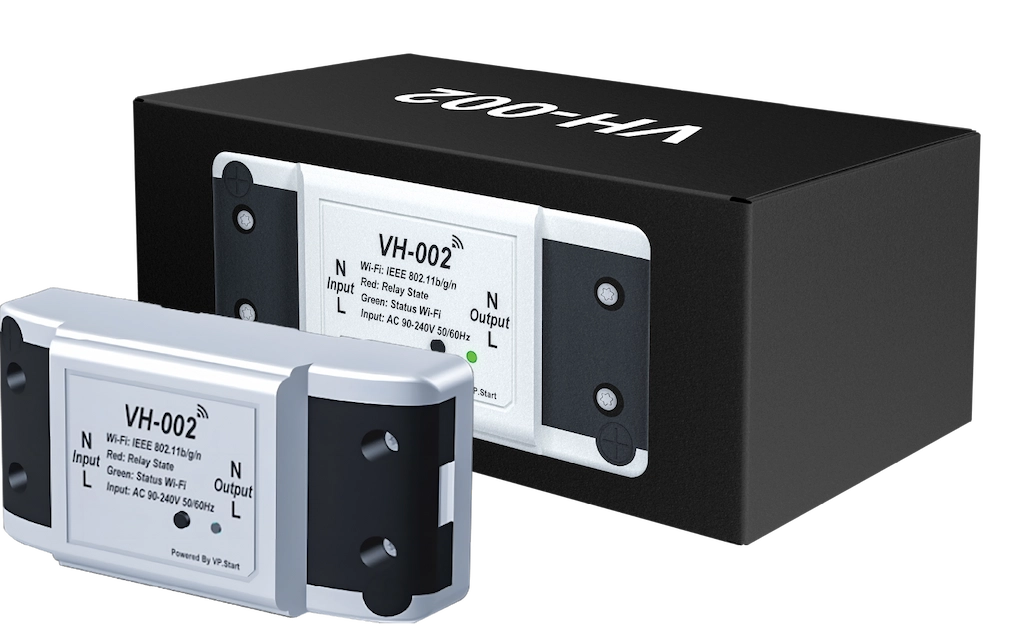

Model
VH-002
Hardware Version
1.0.4
Remote Control and Monitoring
Remote device and monitoring through AlienCheck mobile app.
Channel Output
1500 W
Operation Temperature
0 to 65 °C
Operating Humidity
30 to 90 %
Power Supply
AC Supply Voltage
90 to 240 VAC
Power Rating
1W
Communication Interface
Wireless
IEEE 802.11b/g/n (2.4GHz)
Indicator
Configuration Mode
Green LED is ON
Device Operation
Red LED Flashing
Communication Status
Green LED Flashing
OTA Mode
Green LED Blinking
Configuration
Mobile Application
AlienCheck Mobile Application
Remote Control
Instantly Control Channel Output (ON/OFF)
Yes
OTA
Yes
Remote Setting
Timer Setting ON/OFF
Yes
Schedule
Yes
Default Startup
Yes
Power Limit
Yes
Change WiFi Over Internet
Yes
Remote Monitoring
Active Power Monitoring
Yes (ex: 2.0 w)
Voltage Monitoring
Yes (ex: 220.0 V)
Current Monitoring
Yes (ex: 2.1A)
Energy Monitoring
Yes (ex: 20.0kWh)
Relay Status
Yes
Device Version
Yes
Device Model
Yes
Mac Address
Yes
Network Information
Yes
Physical Specification
Position Mounting
The VH-002 device is supported for indoor installation and use with an existing electrical outlet.
Dimension
H=27 x L=94 x W=45 (mm)
Weight
57g
Material
ABS Plastic
Color
White
Mounting Standard
2 Screws
