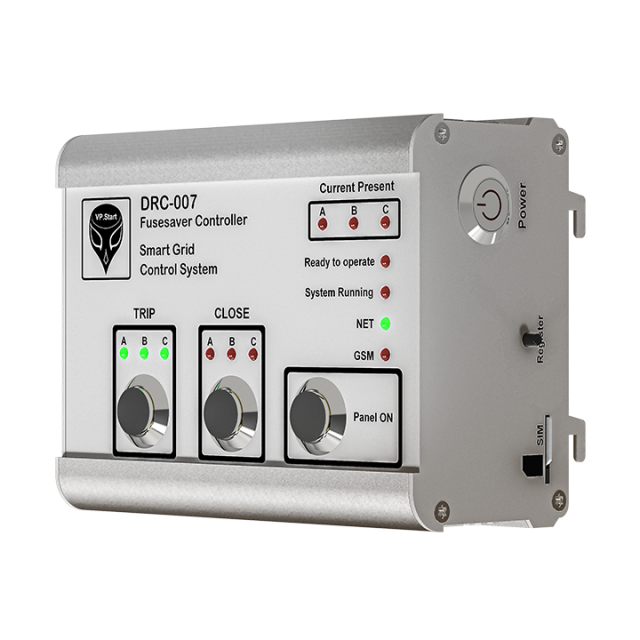

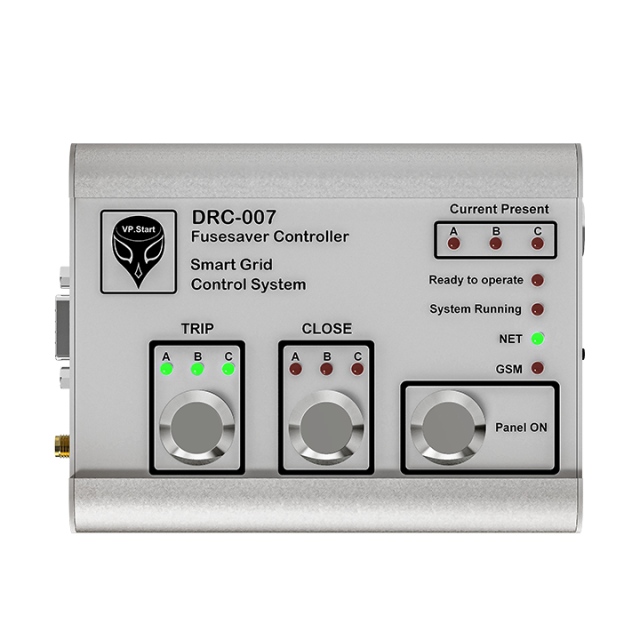

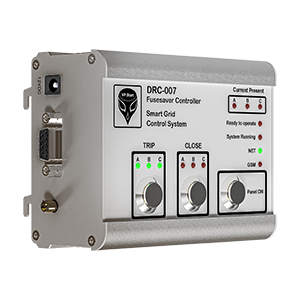

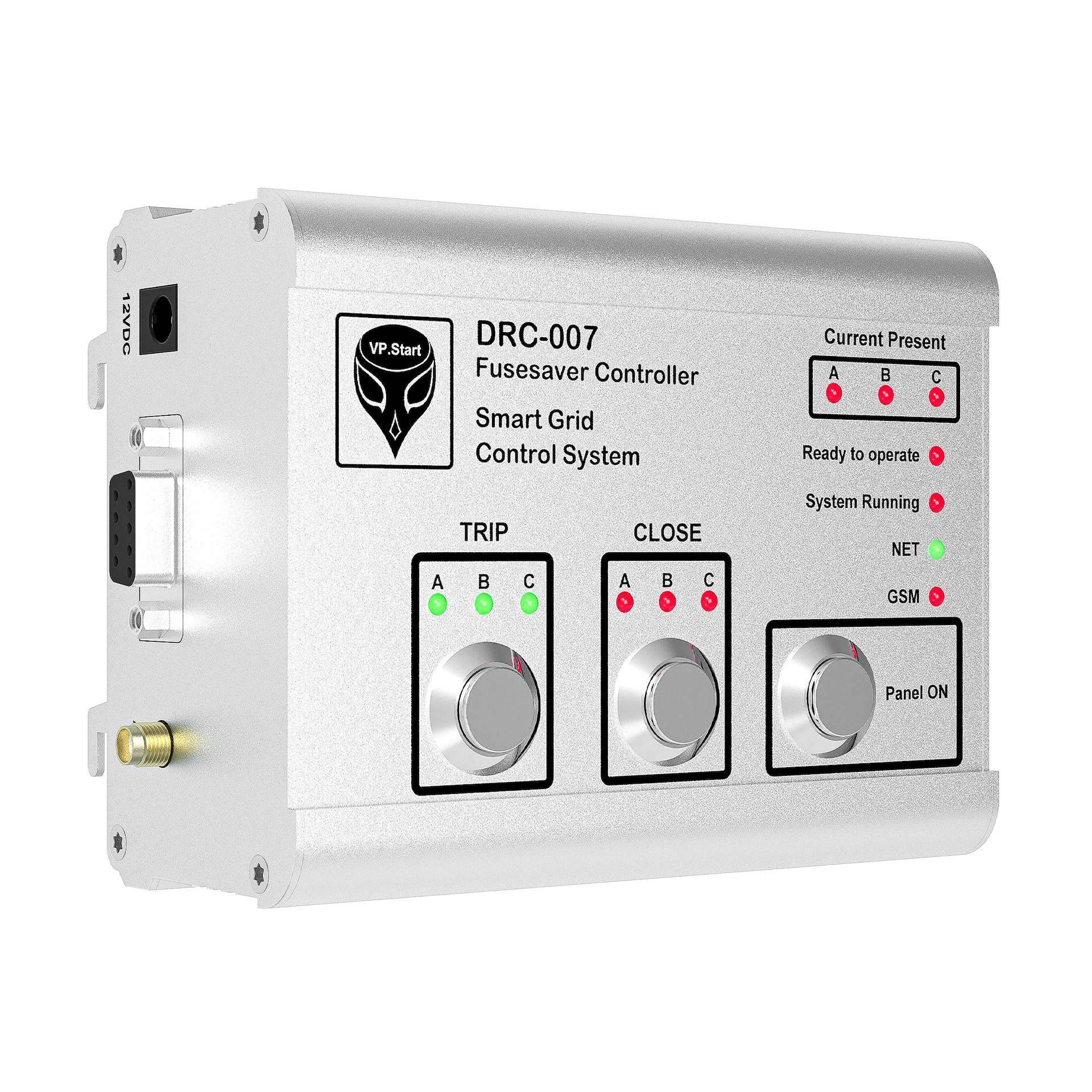

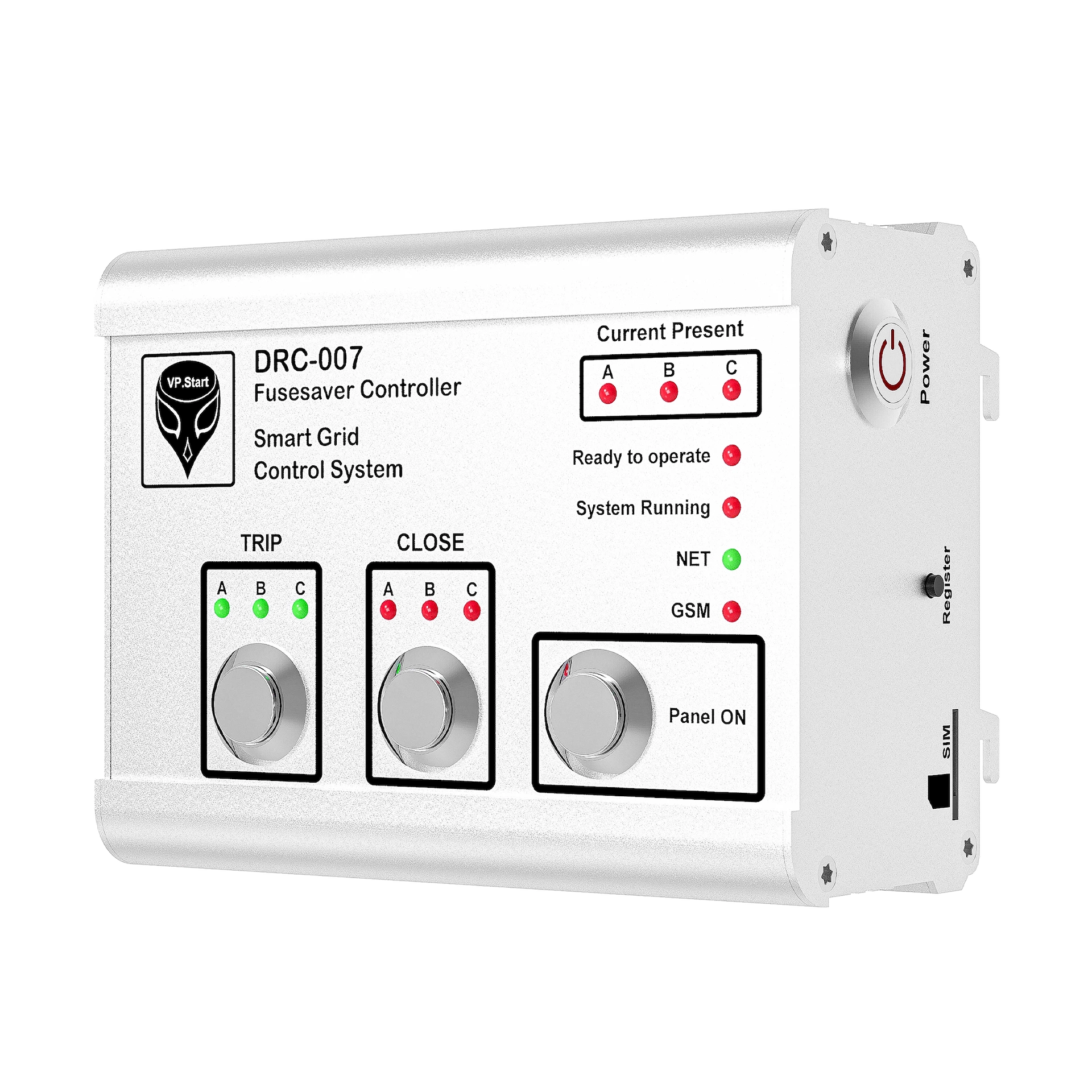

DRC-007

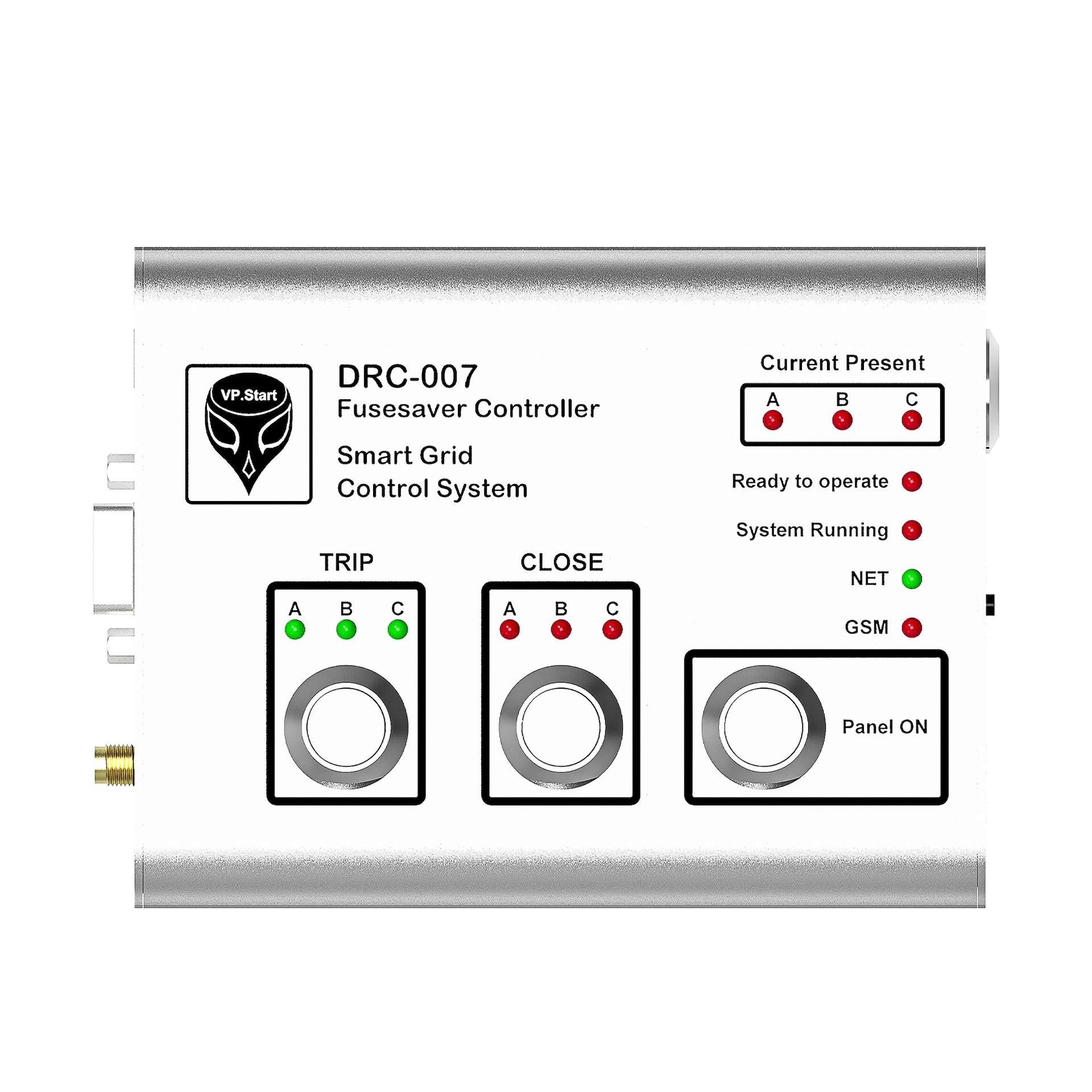

The DRC-007 is a smart controller for Siemens Fusesaver 3AD8. The DRC-007 can easily integrate with the RCU (Remote Control Utility) of the Siemens Fusesaver 3AD8 enabling higher level of flexibility, remote-control capabilities and data-insights for operators managing medium-voltage distribution grid configurations of 22kV & 35kV.

DRC-007 DRC-007

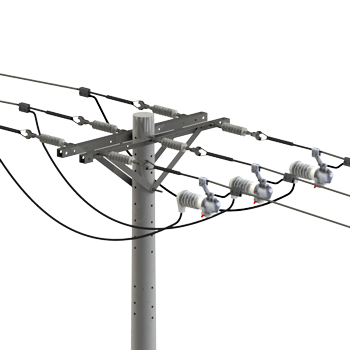

Fusesaver is the only circuit breaker with an unsurpassed clearing time as low as 10 ms (half-cycle) providing maximum protection on high risk fire days.

The DRC-007 is a smart controller for Siemens Fusesaver 3AD8. The DRC-007 can be easily integrated with the RCU (Remote Control Unit) of the Siemens Fusesaver 3AD8 enabling higher level of flexibility, remote-control capabilities and data-insights for operators managing medium-voltage distribution grid configurations of 22kV & 35kV.

DRC-007 DRC-007 DRC-007
  • icon

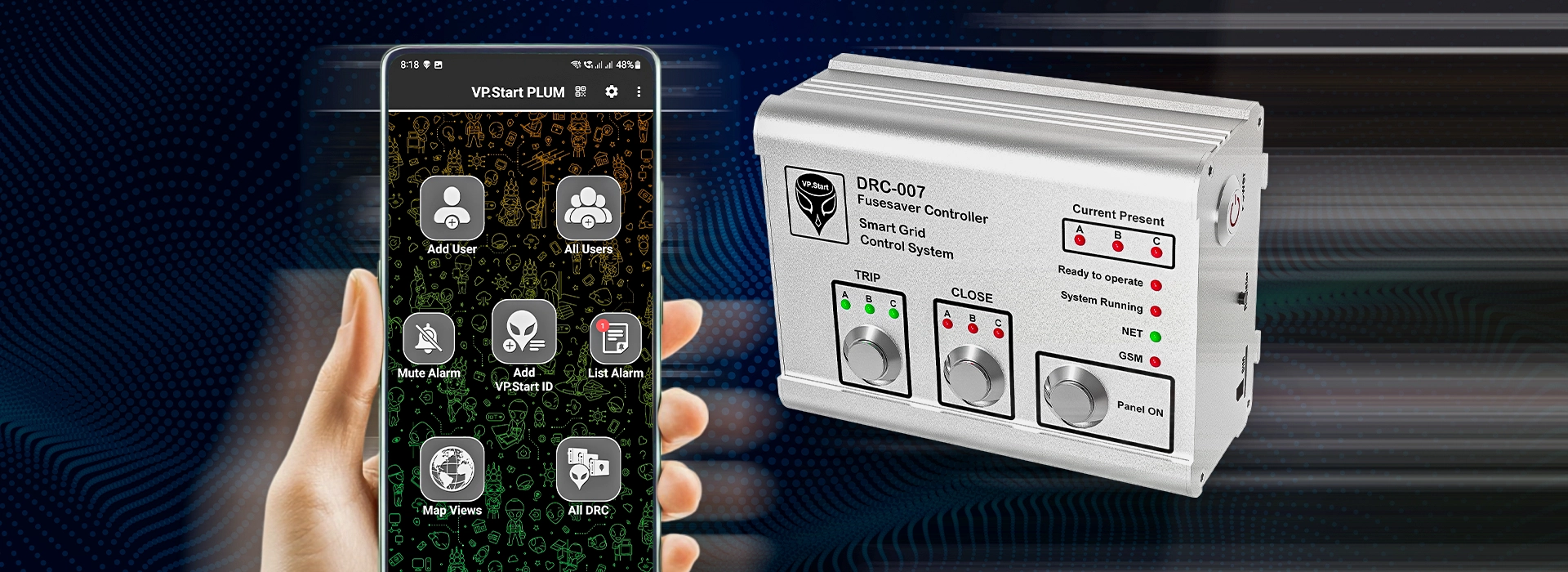

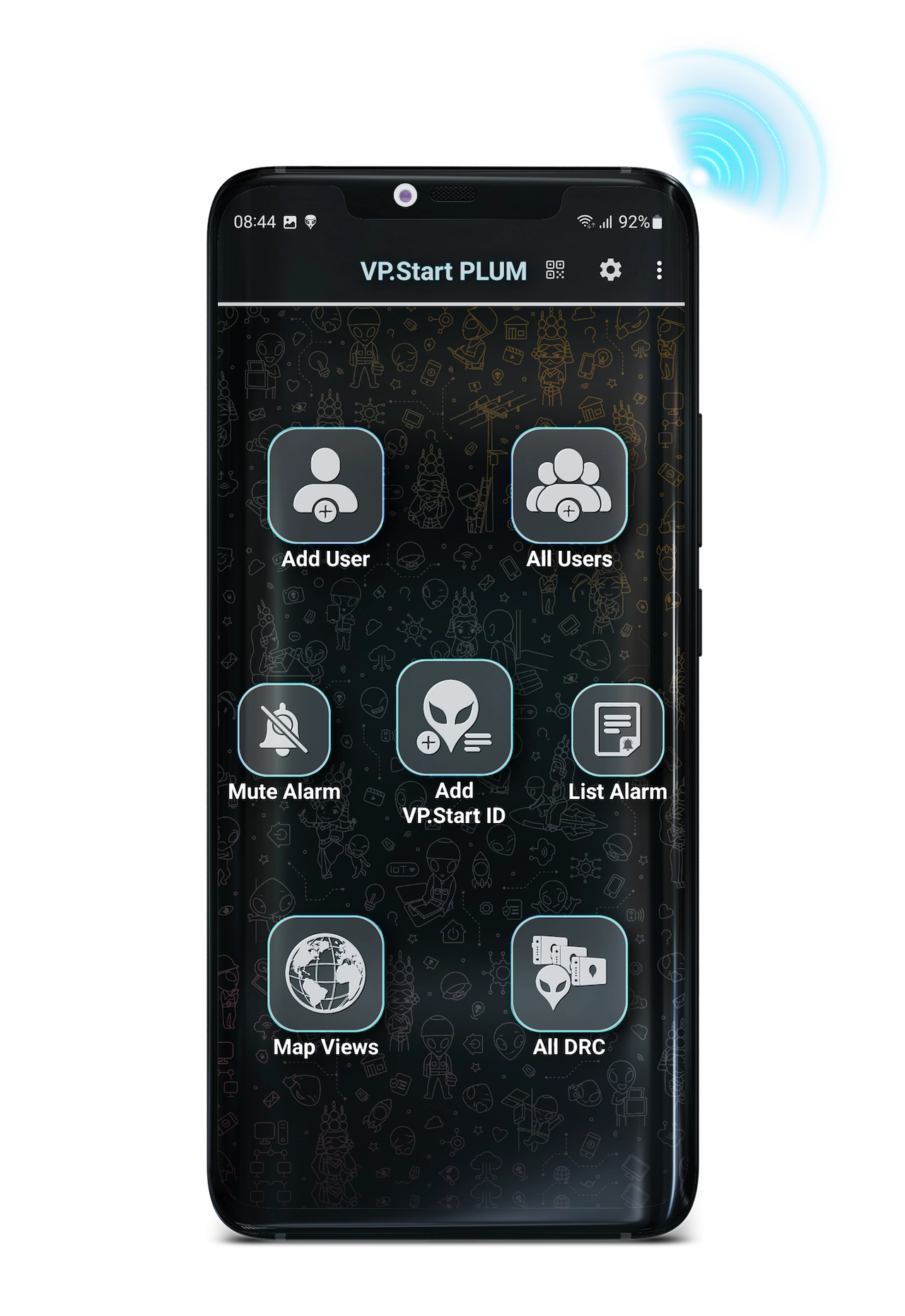

    Remote Control mode (anywhere, anytime) on Fusesaver via smartphone app.

  • icon

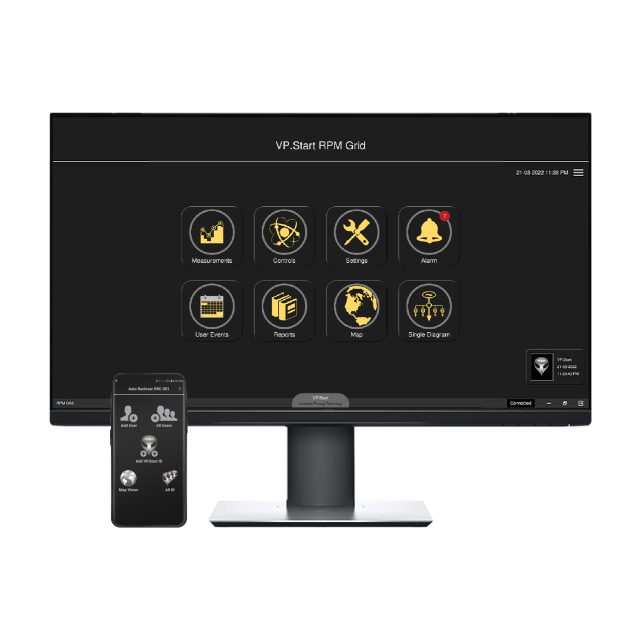

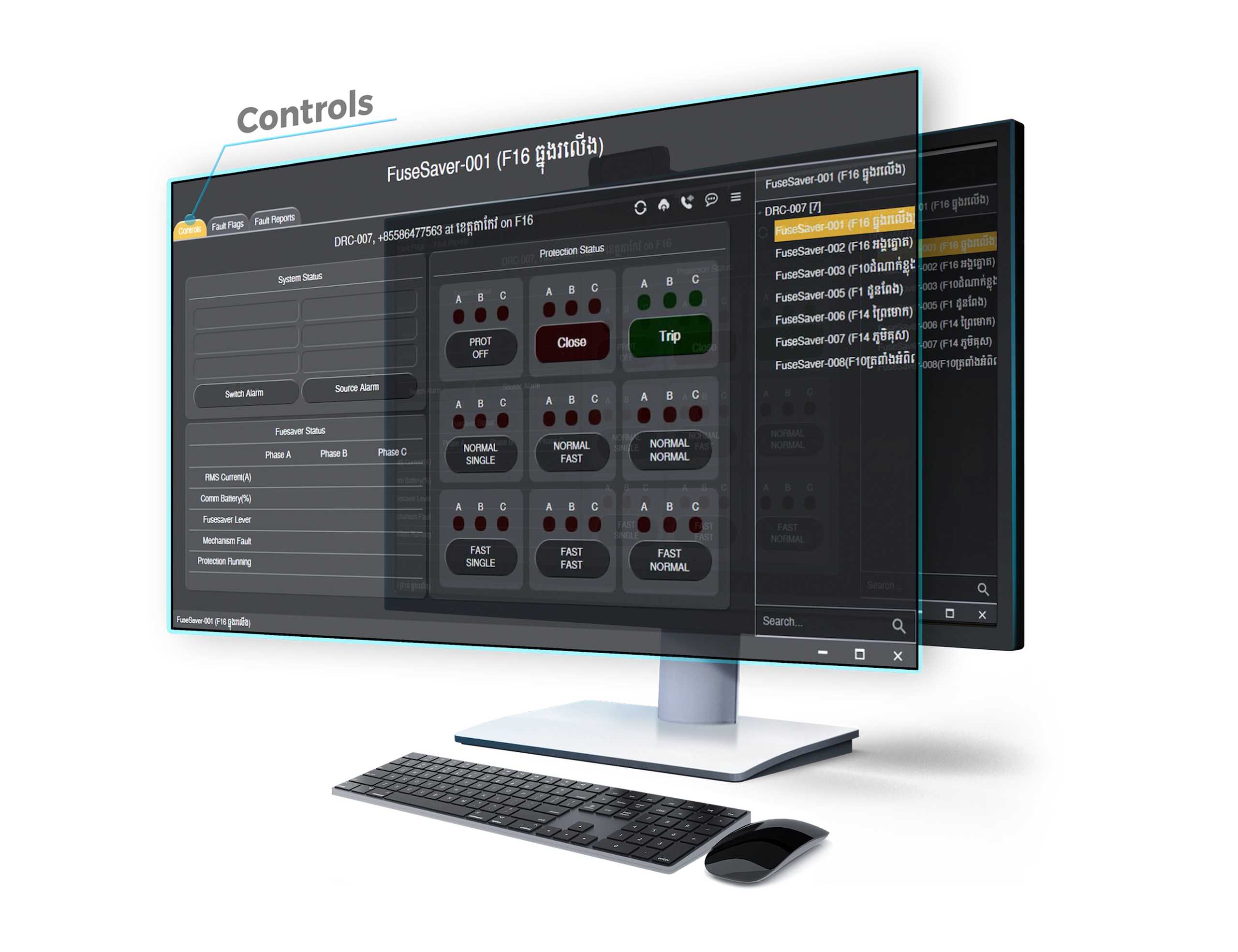

    Remotely Trip or Close Switchgear via smartphone app or RPM Grid software (PC).

  • icon

    Alarm notifications: Switchgear OFF, Door Open, Low Battery.

  • icon

    Google Map views of DRC-007.

  • icon

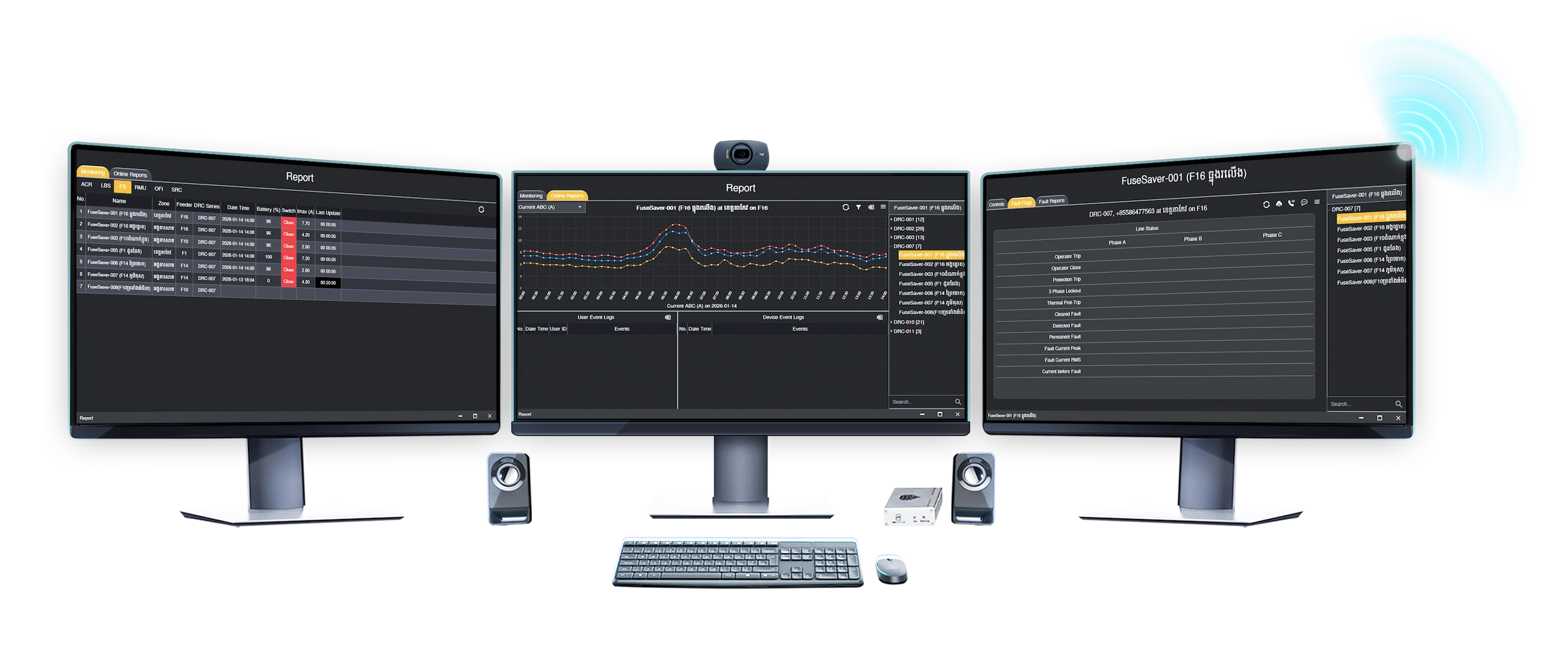

    Remote Control capability functions via RPM Grid and smartphone app.


Product Overview

Features & Applicability

01

DRC-007 retrieve data from RCU & Fusesaver and be able to control and monitoring (Trip/Close Switchgear) via RPM Grid and smartphone app.

02

Communication data dynamic encryption, all data is encrypted before being saved into the con- troller and transmission between the system.

03

Control & configure multiple DRC-007 controllers through smartphone app or PC application.

04

Alarm & notification functions: Switchgear OFF, System Low Battery, Open Door.

05

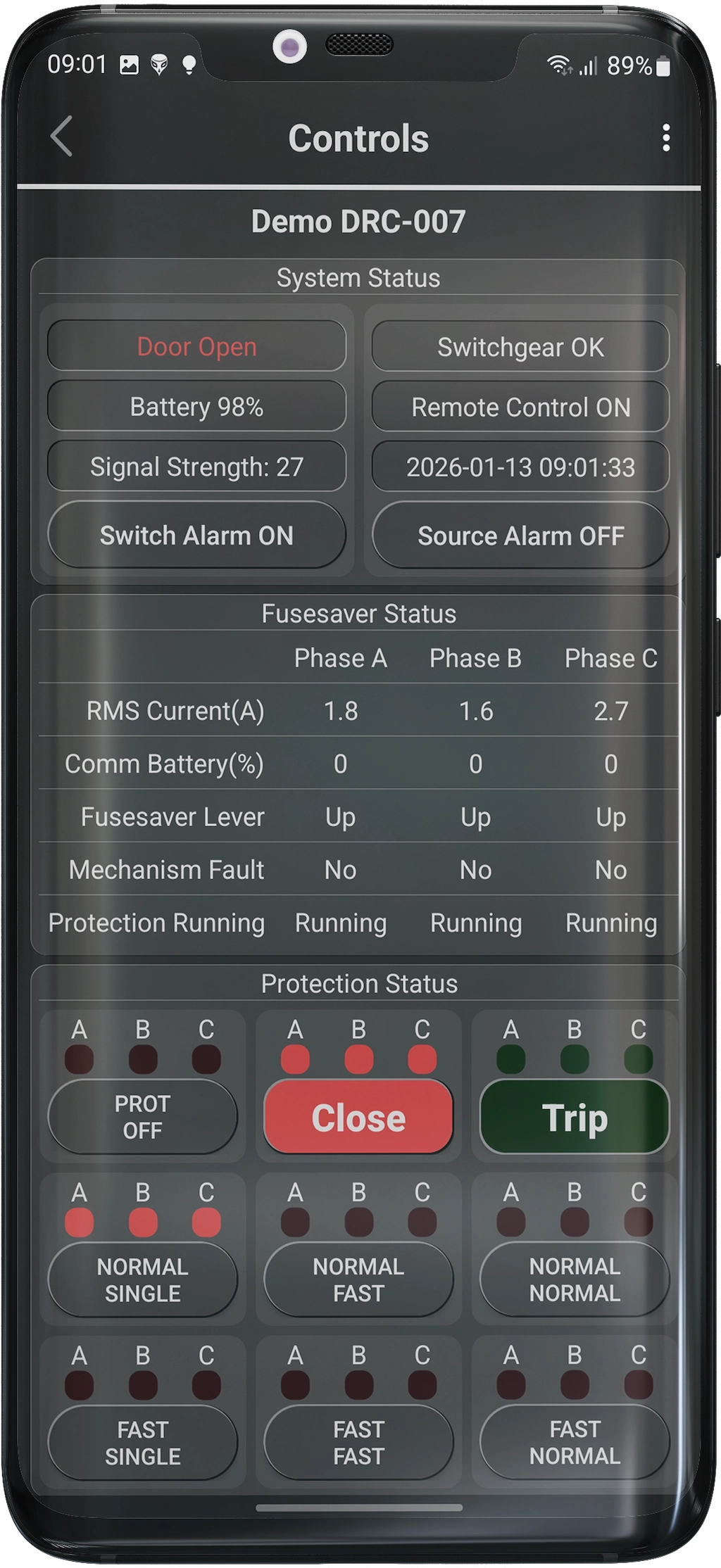

View status of controller & Switch- gear: Line Current, Switchgear Position & Status, Fusesaver Lever, Protection Mode, Fault Reports and User Event Logs.

06

Google Map views support on DRC-007.

07

Stay connected & maintain control of Fusesaver through GSM Call- Control functions to Trip/Close the Switchgear, Phase Current and Switchgear Position.

08

Stay connected & maintain control of Fusesaver through GSM Call- Control functions to Trip/Close the Switchgear, Phase Current and Switchgear Position.

Technical Specifications

Remote Control Unit

Power Supply Battery Type/Capacity

115 or 230VAC (±20%) 12VDC, 7.2Ah

Battery Hold Up Time

48h

Ambient Conditions

-30 to 50 o C

Humidity

5% to 95

Dimensions (L x W x H)

320 x 400 x 650mm
