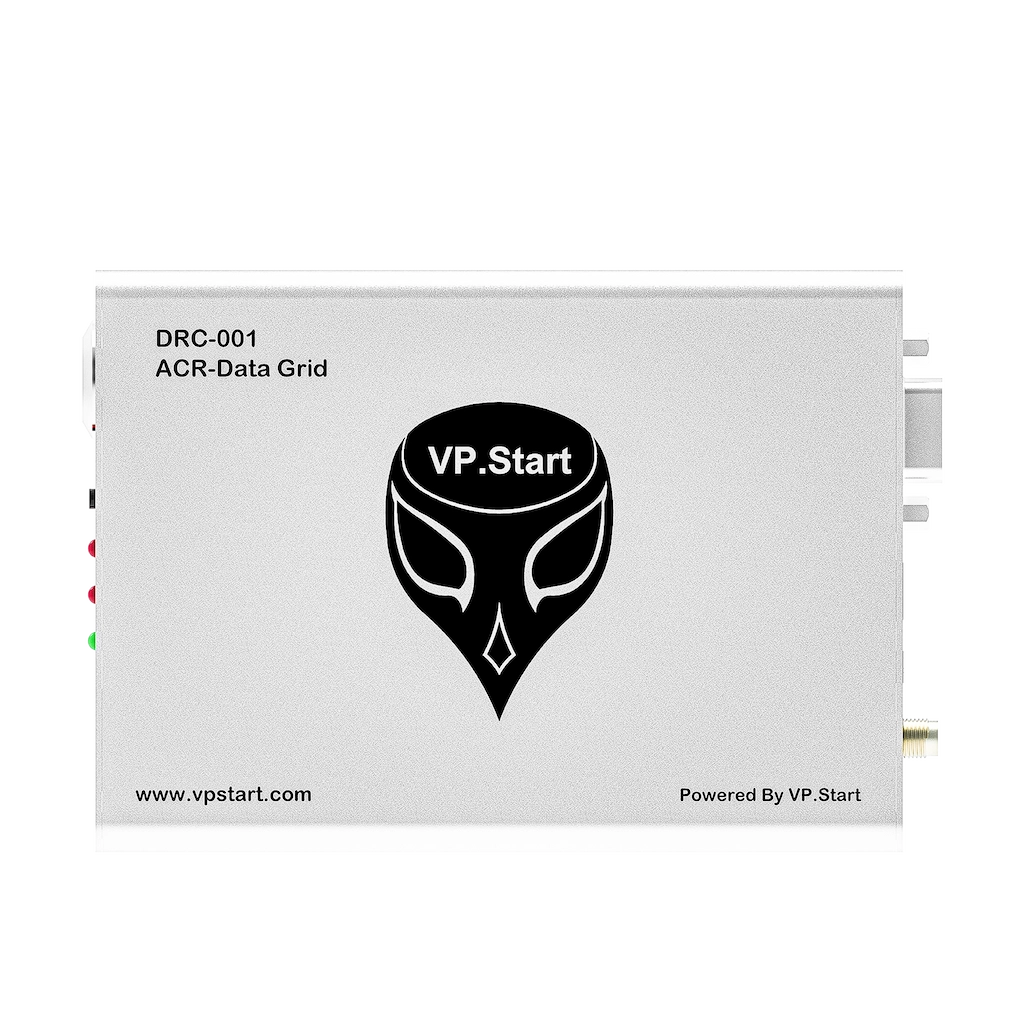

Remote Control Unit
Country of Origin
Cambodia
Controller Dimensions
H=88 x L=122xW=30 (mm)
Remote Controller (GSM/GPRS/Call Control) for Auto Recloser ADVC Schneider 22/35kV
Yes
Remote Control Via Smart Phone or PC for Auto Recloser ADVC Schneider 22/35kV and can be Configured to RPM Grid Systems (Supporting System for a Smart Grid).
Yes
Voltage Supply Range
12–36 Vdc
Operating Frequency Bandwidth
GSM/GPRS: 900/1800 MHz
Ambient Temperature Range
0 to 65 °C
Humidity
30% to 95%

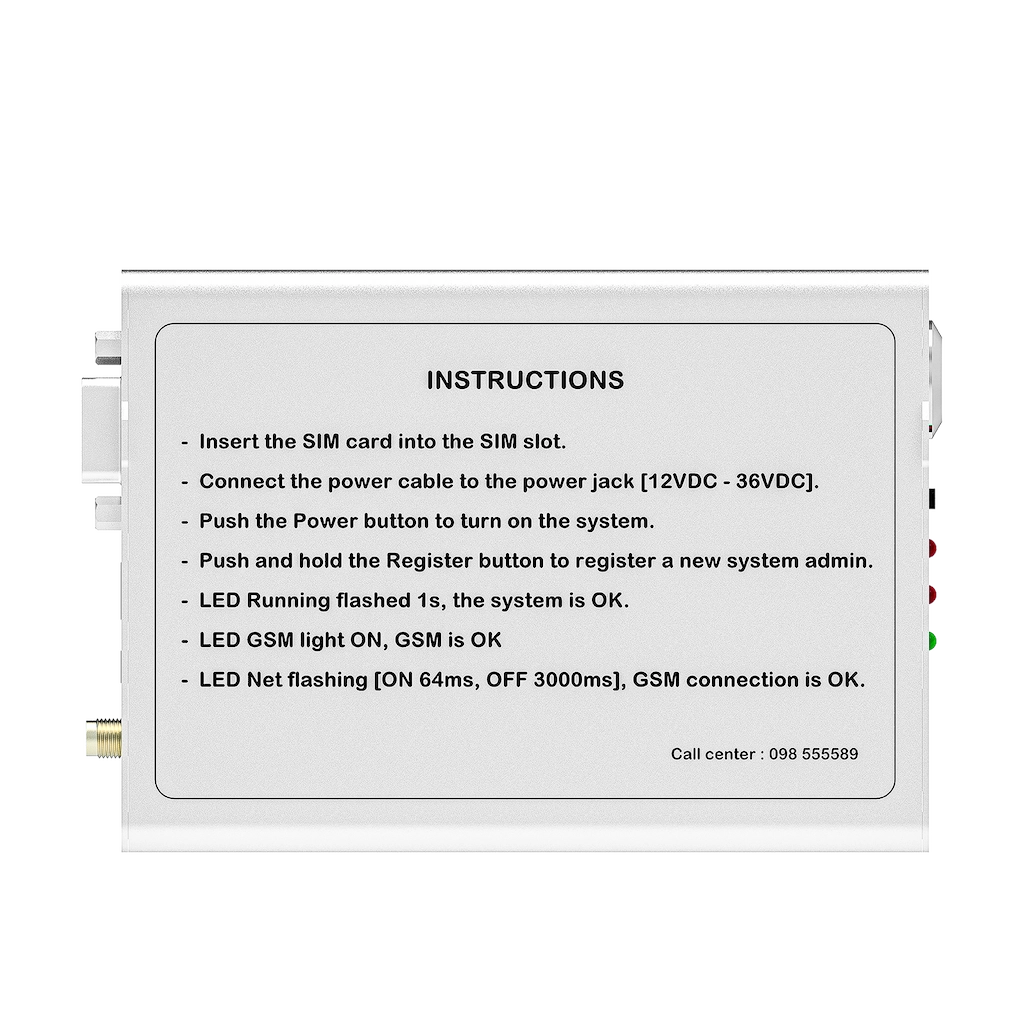

Installation
The Remote Control (DRC-001) is Connected Inside the Auto Recloser ADVC Cabinet (Schneider).
Yes
Remote Control Function
Control Function
Control Switchgear (Trip/Close)
Setting Functions
Phase Trip Current Fault
Ground Trip Current Fault
Time Recloser
Trip Lockout
Protection Setting: Auto-Reclose (On/Off), Ground Protection (On/Off)
SEF (On/Off), SEF Alarm (On/Off), Hotline (On/Off), Dead (On/Off)
Power Flow Direction Setting: Source I Load X, Source X Load I
Alarm Setting: Source Alarm (On/Off), Switchgear Alarm (On/Off)
Monitoring Functions
Measurements Current, Voltage, Real Power, Reactive Power, Apparent
Power, Power Factor, Frequency, Battery Voltage
Switchgear Position: (Trip/Close)
System Frequency: 50 (Hz)/60 (Hz)
Trip Flags: Over Current, Earth Fault, SEF, NPS, Frequency Fault, Loss of Phase, External Fault
Switchgear Operation Counter
Fault Type
Protection Status: (On/Off)
System Control Mode: Local Mode/Remote Mode
Track Controller Location via Google Maps (Tracking Abilities Function)
Reporting & Event Log
Power Report: Daily, Weekly & Monthly
ADVC Event Logs
User Event Logs
Alarm
Switchgear OFF Alarm
Source Supply OFF Alarm
CB 220V Switch OFF Alarm
Call Control Features
Key Tone Control Features
Read Measurement [Current, Voltage, Power]
Control Switchgear (Trip/Close)
Read Switchgear State (Trip/Close)
Language & Voice Support
Language (Khmer)
Voice Instruction
