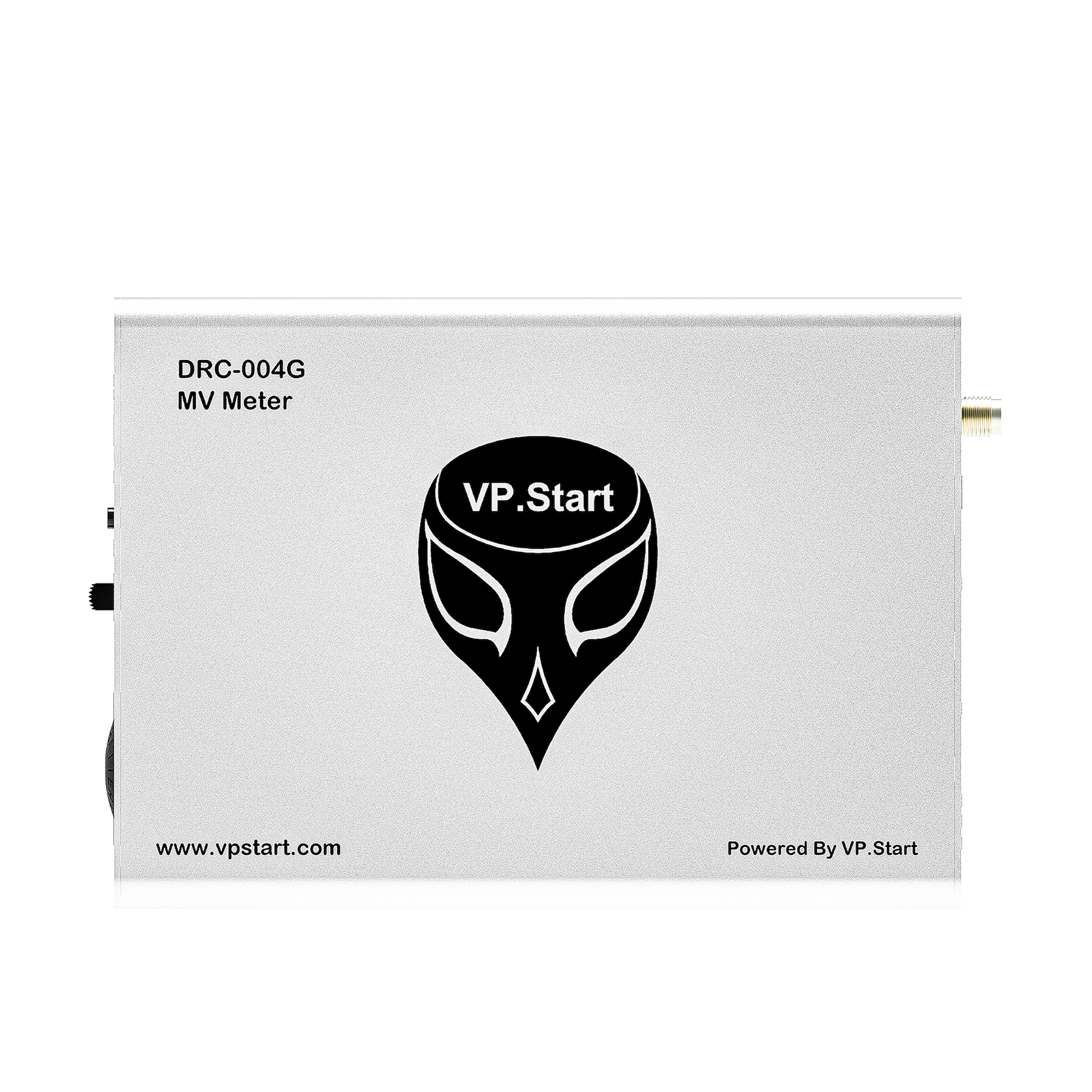

Remote Control Unit
Country of Origin
Cambodia
Manufacturer’s Name
VP.Start Technology
Model
DRC-004G
Maintenance Alarm
Yes
IR Sensor Connection Lose Alarm
Yes
Mounting Position
The Remote Control (DRC-004G) is Connected Inside the MV Metering Cabinet (Landis +Gyr).
Dimensions
H=88 x L=122 x W=30 (mm)
Weight
200 (mg)
Remote Control Via Smartphone or PC for Meter (Landis +Gyr) can be Configured to Distribution Remote Control System.
Yes
Voltage Supply Range
50 to 230 VAC
Operating Temperature
0 to 65 °C
Ambient Temperature Range
-10 to +70 °C
Operating Humidity
30 to 95 °C
Communication Interface
Serial (.c1) RS232
Optical Len Port
GSM Communication
GPRS Communication
Remote Control Functions & Features
Controller Status Indication Via LEDs
System Running (Blinking 1s)
System Power(Red LED is ON)
System Network(Green LED Flashing)
Energy Monitoring Features
Active Energy Import(Yes)
Active Energy Export(Yes)
Reactive Energy Import(Yes)
Reactive Energy Export(Yes)
Data Energy TOU Rating(Optional)
Meter Serial Number(Yes)
Meter Date & Time(Yes)
Alarm Notifications
Source Supply OFF Alarm (On/Off)(Yes)
Loss of Phase Alarm (On/Off) (Yes)
Current Warning Alarm (On/Off) (Yes)
Current Warning Value(0.01 to 100 A)
Meter Interface Connection(.c1/Optical Len)
Data Upload/Refresh(15, 30, 60 Optional (DRS Available))
Internet Hosting Address(Optional (DRS Available))
Physical Specifications
Mounting Position (The Remote Control (DRC-004G) is Connected Inside the MV Metering Cabinet (Landis +Gyr).)
Dimensions (H=88mm x L=122mm x W=30 mm)
Weight (200 mg)
