Remote Control Unit
Country of Origin
Cambodia
Language: Khmer
Yes
Call Control Instruction Sound Track
Yes
Controller Dimensions
H=88 x L=122xW=30 (mm)
Controller Weight
200 (mg)
Mounting & Installation
The Remote Control (DRC-006) is Connected & Mounted Inside the RTU T200i Cabinet.
Voltage Supply Range
12-36 VDC
Operation Frequency Bandwith
GSM/GPRS: 900/1800 MHz
Ambient Temperature Range
0 to 65 °C
Operating Humidity
30 to 95 %

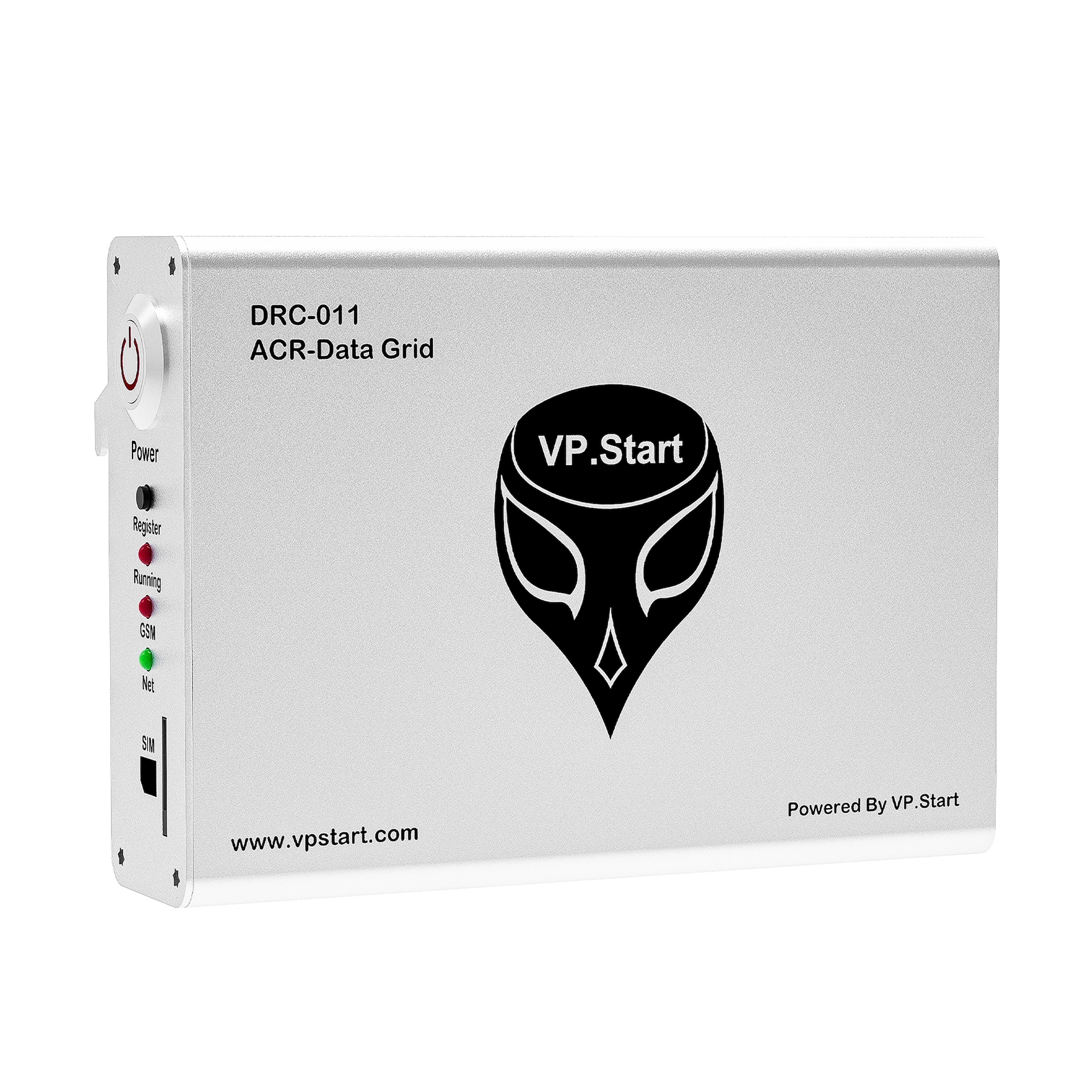

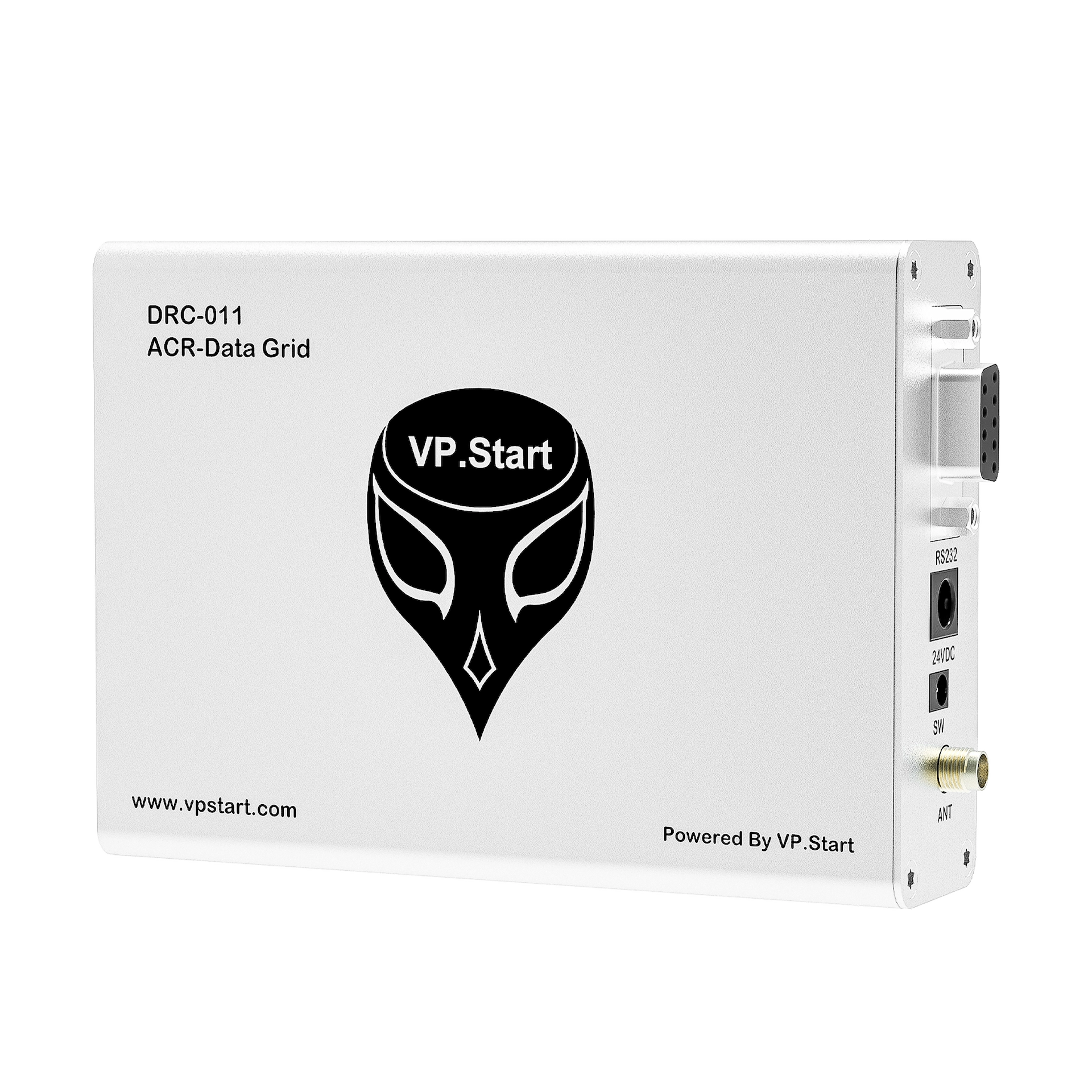

The Remote Control (DRC-011) is Connected
Yes
Inside the Auto Recloser Cabinet (ENTEC)
Yes
Control Functions
Control Switchgear ( Open/Close)
Yes
Setting Functions
Protection Setting (On/Off) (Yes)
Recloser Function (On/Off) (Yes)
Hotline Setting (On/Off) (Yes)
Sensitive Earth Fault Setting (On/Off) (Yes)
Ground Protection (On/Off) (Yes)
Alarm Setting Source Alarm (On/Off) (Yes)
Monitoring Features
Measurement Current, Voltage, Real Power, Reactive Power, Apparent Power, Power Factor, Frequency, Battery Voltage (Yes)
Switchgear Position (Open/Close) (Yes)
System SELF CHECK (Yes)
Battery System Status (AC Supply, Charge, Discharge) (Yes)
Controller Location (on Google Map by Using the Tracking Abilities Function) (Yes)
Alarm Notifications
Switchgear Off Alarm (Yes)
Source Supply Off Alarm (Yes)
Reporting & Event Logs
User Event Logs (Yes)
Remote Control System Software
Smartphone App ( Android) (Yes)
RPM Grid Software (PC) (Yes)
Call Control Features
Key Tone Control Feautures
Read Measurement (Current, Voltage, Power) (Yes)
Control Switchgear (Open/Close) (Yes)
Read Switchgear State (Open/Close) (Yes)
