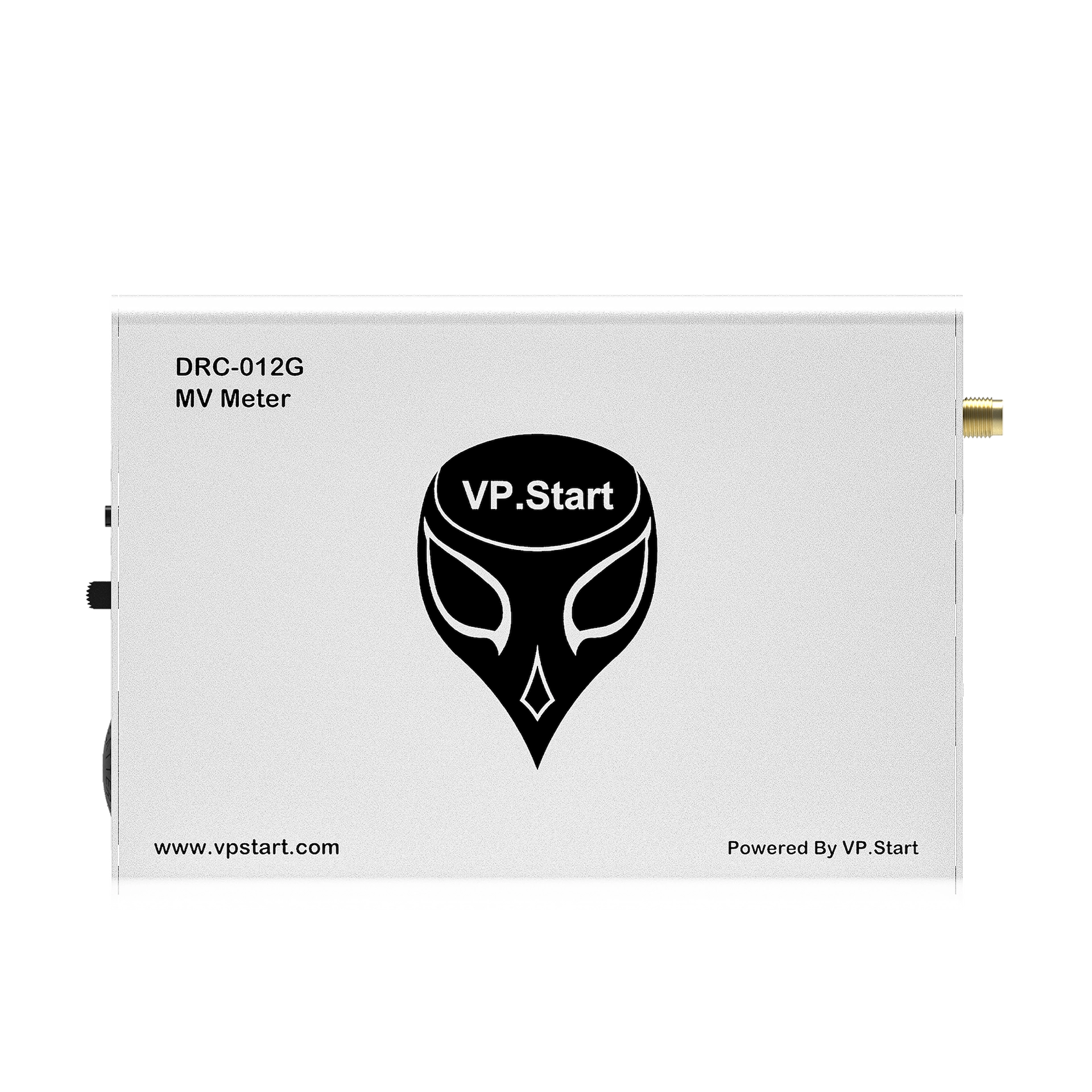

Remote Control Unit
Country of Origin
Cambodia
Manufacturer’s Name Technology
VP.Start Technology
Manufacture’s Reference
DRC-012G
Remote Control for MV Meter (EDMI)
Yes
Voltage Supply Range
12 to 14 VDC
Operating Frequency Bandwidth
GSM/GPRS: 900/1800 MHz
Ambient Temperature Range
-10 to 70 °C
Operating Humidity
30 to 95 %
Operation Temperature
0 to 65 °C
Communication Interface
Communication Interface
Status LEDs
System Running: Blinking 1s.
System Power: Red LED is ON.
System Network: Green LED Flashing.
Dimensions
H=88 x L=122 x W=30 (mm)
App & Software Tools Interface
Supporting PC Application
Yes
Mobile Application
Yes
Energy Monitoring Features
Active Energy Import
Yes
Active Energy Export
Yes
Reactive Energy Import
Yes
Reactive Energy Export
Yes
Data Energy TOU Rating
Optional (DRS Available)
Meter Serial Number
Yes
Meter Date & Time
Yes
Physical Specifications
Mounting Position
The Remote Control (DRC-012G) is Connected Inside the MV Metering Cabinet (EDMI).
Dimensions
H=88mm x L=122mm x W=30 mm
Weight
200 mg
