Remote Control Unit
Supported Devices
A. Auto Recloser: Auto Schneider (ADVC), Auto ENTEC, Auto Cooper
B.Load Break Switch: Model ABB (22kV/35kV), Model S&S Korea, Model Precise (SREC-24), Model Precise ORAP21.396.6MT, Model Precise SLBS.24, Model Schneider PLA, Model Schneider RL-Series, Model ZW32, Model ENTEC KPS, Model JK-SGS (Cover), Model JK-SGS (Uncover), Model LBS SEL, Model SPG-24
C. Ring Main Unit: Model SIEMENS, Model ABB, Model RM6
D. Fusesaver: SIEMENS Fusesaver
E. Over Head Fault Indicator: Overhead Fault Indicator
Operation Security
- System Security with Login Account (Username and Password).
- System Login with Operator Photo Record.
- User Operation Event Log.
- Switchgear Control with System Validation and Operator Photo Record.
Communication Security
Dynamic Encryption Data Communication Security.
Operation Security
- Data Communication Protocol Support: VP.Start Protocol
- DNP3
- Modbus
- IEC 60870-5-101/104
System Event Log and Report
A. Operator Action Record: System Login/Logout., System Control Event Record.
B. Power Line Event Record: - Controller Alarm Record. - Switchgear OFF Event Record. - Line Fault Alarm Record.
RPM Grid Function
1. CONTROL
2. SETTING
3. MONITORING
4. REPORTING & LOG
5. ALARM
6. SOFTWARE MANAGEMENT

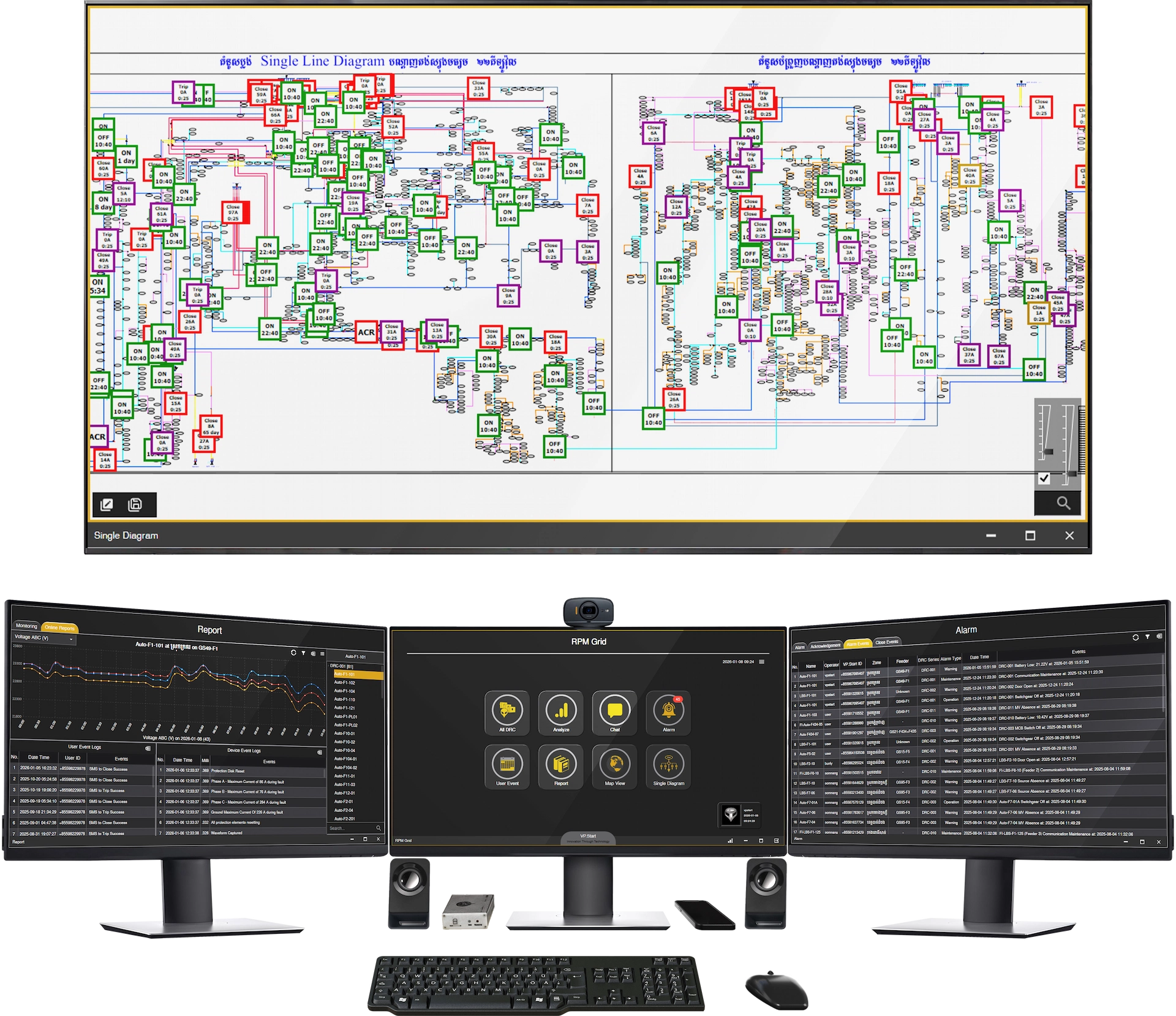

System Event Log and Report
A. Support Single Line Diagram.
B. Controller Located Indication on Single Line.
C. Controller Information Indicated.
D. Controller Alarm Indication (Blinking) on Single Line.
E. Support Action: - Click to go to Controller. - Point to Show Controller's Information. - Zoom In/Out.
RPM Grid Function
A. Support google Map.
B. Controller Located Indication on Map.
C. Controller Information Indicated.
D. Controller Alarm Indication (Blinking).
E. Support Action: - Click to go to Controller. - Point to show Controller’s Information. - Zoom In/Out.
Map Support
A. Support google Map.
B. Controller Located Indication on Map.
C. Controller Information Indicated.
D. Controller Alarm Indication (Blinking).
E. Support Action: - Click to go to Controller. - Point to show Controller’s Information. - Zoom In/Out.
Call Control Function
A. Call Line Report (Status, Measurement).
B. Call Switchgear Report.
C. Call Switchgear Control.
RPM Modem
Communication Modem
GSM/GPRS Modem
Communication Support
GSM/GPRS (900, 1800) MHz
Modem Communication Interface
USB Communication
Modem Power Operation
5 VDC
Modem SIM Support
Micro SIM Card
Modem SIM Slot
1 SIM Card
Ambient Temperature Range
0 to 55 °C
Operating Humidity
< 95 %
